Products

RapiD Vision unit

Suitable for virtually any product
Manufactured entirely from 316 stainless steel
Fully waterproof enclosure
Hygienic design
Custom designs available

Measurements:

800x470x600 mm (LxWxH)
Weight:

45 kg
Power:

230V, 2A

Measurements:

800x850x600 mm (LxWxH)
Weight:

60 kg
Power:

230V, 3A

Single

Multi

RapiD Vision bottom side scanner

Custom designs available
Manufactured entirely from 316 stainless steel
Hygienic design

Measurements:

2130x560x1000 mm (LxWxH)
Power:

230V, 5A
Product:

maximum 700x300mm (LxW)
Conveyor speed:

0.1 tot 0,4 m/s

Measurements:

2130x860x1000 mm (LxWxH)
Power:

230V, 5A
Product:

maximum 700x300mm (LxW)
Conveyor speed:

0.1 tot 0,4 m/s

Single

Multi

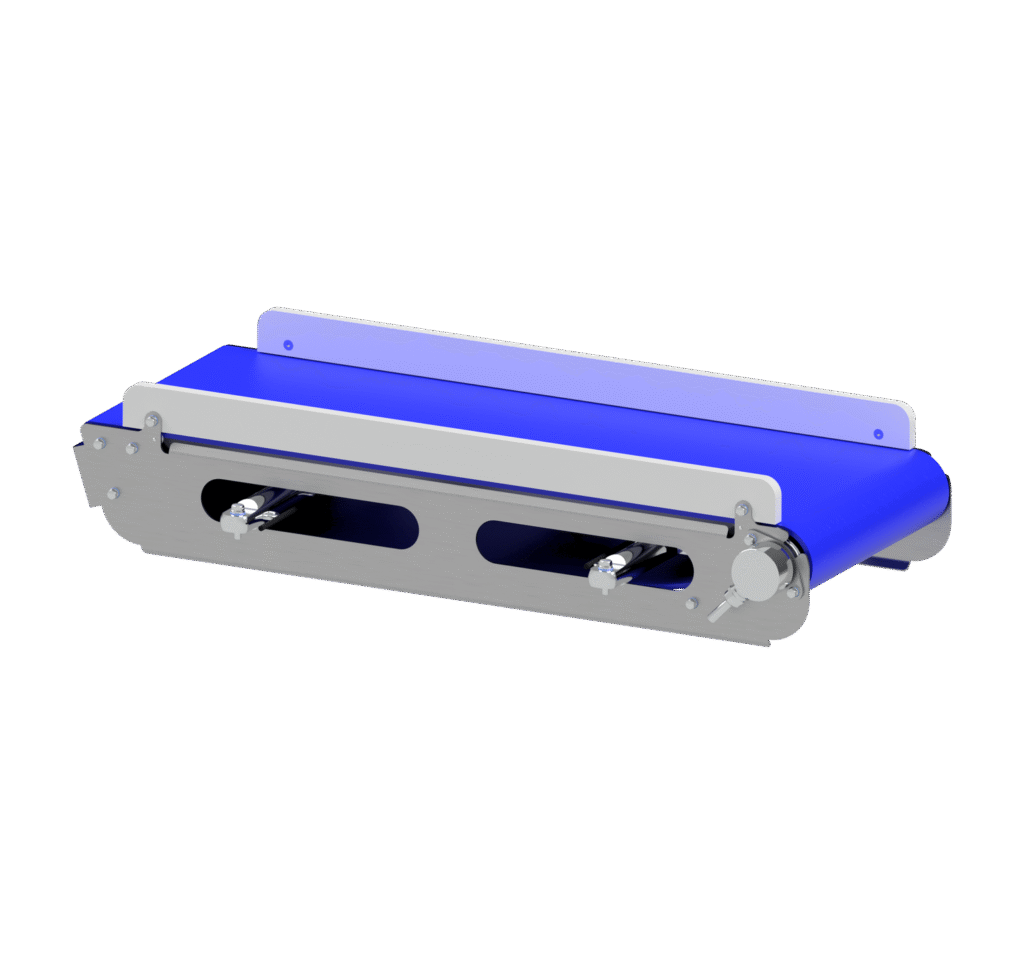

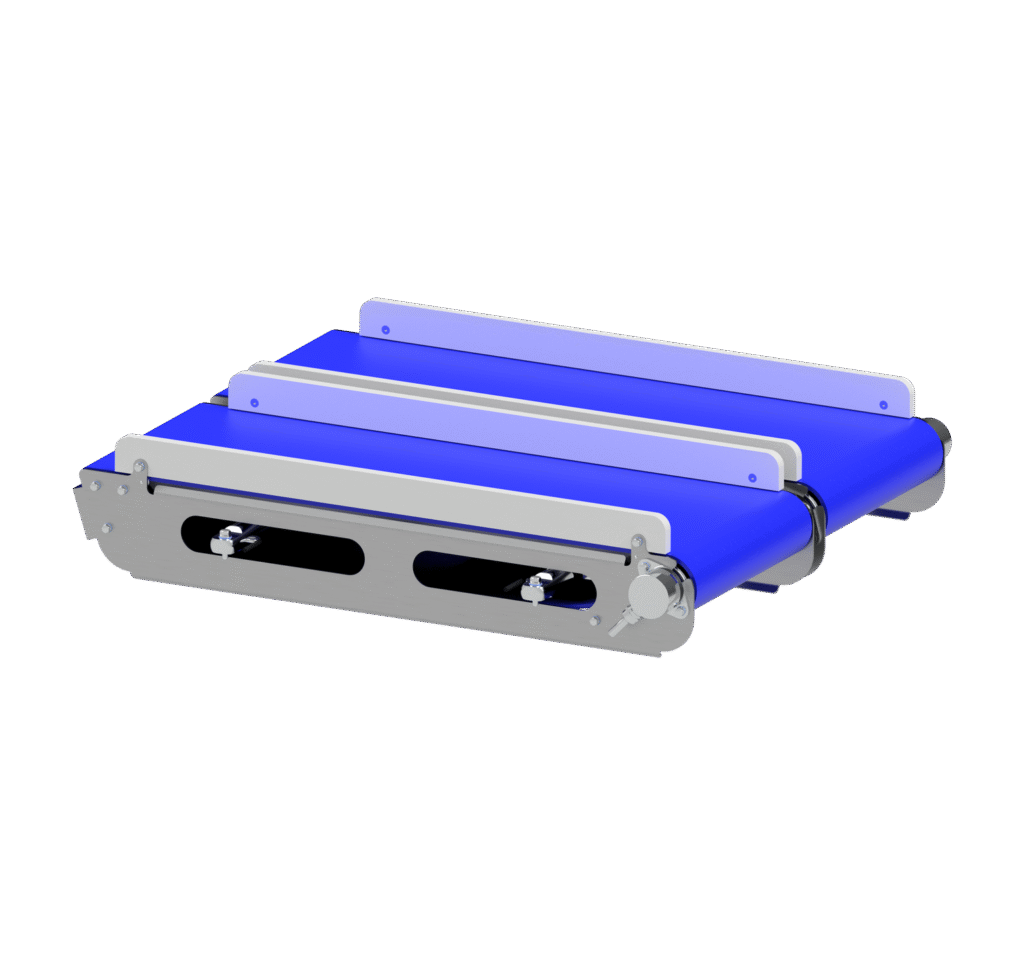

RapiD Vision weighing system

RapiD Vision weighing system integrated with the bottom side scanner

Loadcells:

Three load cells per weighing belt for stable and accurate weighing
Minimal product weight:

50 grams
Maximum product weight:

20 kg

Single

Multi

RapiD Reject system

Fully customizable for customer-specific applications
Designed for placement directly behind the RapiD Vision system
Controlled directly by the RapiD Vision system
Multiple reject belts can be installed in series
Hygienic design

Compressed air pressure:

8 bar
Compressed air consumption:

20 L/min per reject belt
Power:

230V, 1.5A per reject belt

Single

Multi
